Another Cute Measurement Equipment
[/av_fullscreen_slide]
[/av_fullscreen]
[av_section color=’main_color’ custom_bg=” src=” attachment=” attachment_size=” attach=’scroll’ position=’bottom right’ repeat=’no-repeat’ video=” video_ratio=’16:9′ min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-shadow’ bottom_border=’no-border-styling’ id=’about’]
[av_heading tag=’h2′ padding=’50’ heading=’ACME Cape’ color=” style=’blockquote modern-quote modern-centered’ custom_font=’#ffffff’ size=’60’ subheading_active=” subheading_size=’15’ custom_class=”][/av_heading]
[av_one_half first]
[av_heading tag=’h2′ padding=’20’ heading=’The ACME concept’ color=” style=’blockquote modern-quote’ custom_font=’#ffffff’ size=” subheading_active=’subheading_below’ subheading_size=’15’ custom_class=”]
Fully open solution
[/av_heading]
[av_textblock size=” font_color=” color=”]
The ACME initiative was launched, with the objective of getting rid of all these limitations of current proprietary solutions and providing the community with the most flexible low-cost but high-perf solution!
The proposed solution comes as an extension for the BeagleBone Black (the ACME Cape), designed to provide multi-channel power and temperature measurements capabilities to the BeagleBone Black (BBB). It comes with power and temperature probes integrating a power switch (the ACME Probes), turning it into an advanced all-in-one power/temperature measurement solution.
[/av_textblock]
[/av_one_half][av_one_half]
[av_heading tag=’h2′ padding=’20’ heading=’A scalable solution’ color=” style=’blockquote modern-quote’ custom_font=’#ffffff’ size=” subheading_active=’subheading_below’ subheading_size=’15’ custom_class=”]
Using a standard connector
[/av_heading]
[av_textblock size=” font_color=” color=”]
The ACME initiative also proposes a new standard (free of charge) for power measurement connector (the ACME Power Connector), to solution the issue of development boards not being ready for power measurements.
The ACME initiative is completely open source, from HW to SW drivers and applications.
[/av_textblock]
[/av_one_half][av_hr class=’invisible’ height=’50’ shadow=’no-shadow’ position=’center’]
[/av_section]
[av_section color=’main_color’ custom_bg=” src=’http://baylibre.com/wp/wp-content/uploads/2014/07/acme-poster-back3-1030×659.png’ attachment=’3602′ attachment_size=’large’ attach=’parallax’ position=’center center’ repeat=’stretch’ video=” video_ratio=’16:9′ min_height=” min_height_px=’500px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ id=’details’]
[av_heading heading=’HW details’ tag=’h1′ style=’blockquote modern-quote modern-centered’ size=’60’ subheading_active=” subheading_size=’15’ padding=’0′ color=’custom-color-heading’ custom_font=’#ffffff’][/av_heading]
[/av_section]
[av_section color=’main_color’ custom_bg=” src=” attachment=” attachment_size=” attach=’scroll’ position=’bottom right’ repeat=’no-repeat’ video=” video_ratio=’16:9′ min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ id=”]
[av_heading heading=’ACME RevB’ tag=’h1′ style=’blockquote modern-quote modern-centered’ size=” subheading_active=” subheading_size=’15’ padding=’25’ color=” custom_font=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”][/av_heading]
[av_textblock size=” font_color=” color=”]
Compared to the original version, the RevB improved the previous design to reduce the size, the cost and the usability.
- The USB and Jack probe can be stacked together
- The HE10 size was drastically reduced
- A smaller connector replaced the previous one
- Standard cable are usable instead of the previous custom one
- Power switching is consistent between USB and Jack probe
[/av_textblock]

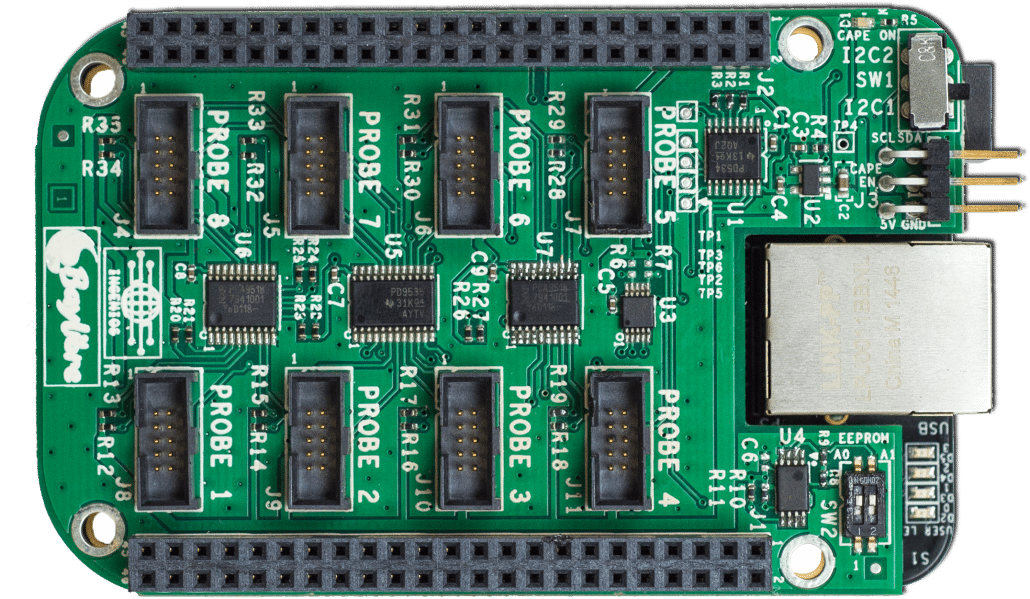

[av_heading heading=’Main board ACME Cape’ tag=’h2′ style=’blockquote modern-quote modern-centered’ size=” subheading_active=” subheading_size=’15’ padding=’25’ color=” custom_font=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”][/av_heading]
[av_one_half first]
[av_image src=’http://baylibre.com/wp/wp-content/uploads/2015/11/20150916_BayLibre_ACME_RevB-010-1030×599.png’ attachment=’3804′ attachment_size=’large’ align=’center’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[av_textblock size=” font_color=” color=”]
Measurements:
- VBUS from 0 to +36V
- VSHUNT from 2.5uV up to 81.92mV
[/av_textblock]
[/av_one_half][av_one_half min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_textblock size=” font_color=” color=”]
Data reporting:
- VBUS, VSHUNT, CURRENT AND POWER
- High Accuracy measurements
- 16-bit ADC
- 2.5uV offset for VSHUNT
- 1.25mV offset for VBUS
- 0.02% Gain error typical
- 140us conversion time minimum
- On-board noise filtering
Other features
- Calibration for optimum accuracy selection
- Multiple measures averaging
- Conversion time selection from 140us up to 8.244ms
- Programmable ALERT interrupt for over/under limit values
- Configurable operating mode
- I2C 400KHz data transmission bus
- 16 I2C address bus possibilities
[/av_textblock]

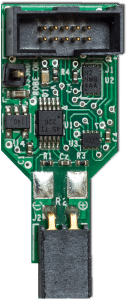

[/av_one_half][av_heading tag=’h2′ padding=’25’ heading=’HE10 Power Probe’ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=” subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]
[av_one_half first]
[av_image src=’http://baylibre.com/wp/wp-content/uploads/2015/11/20150916_BayLibre_ACME_RevB-004-127×300.png’ attachment=’3803′ attachment_size=’medium’ align=’center’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[/av_one_half][av_one_half min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
2-pin HE10 header
- 6A max current
- 13mΩ contact resistance
3 possible current ranges
- 0.005Ω for 1.5A < Current < 10A
- 0.05Ω for 150mA < Current < 1.5A
- 0.5Ω for 0 < Current < 150mA
2010 package, 0.5W max, 1% tolerance
INA226: Current / Power Monitor
- Contains a TI INA226 for the ADC conversion.
[/av_textblock]

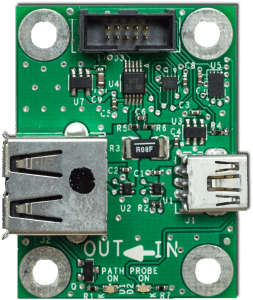

[/av_one_half][av_heading tag=’h2′ padding=’25’ heading=’USB Power Probe’ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=” subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]
[av_one_half first]
[av_image src=’http://baylibre.com/wp/wp-content/uploads/2015/11/20150916_BayLibre_ACME_RevB-002-253×300.png’ attachment=’3802′ attachment_size=’medium’ align=’center’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[/av_one_half][av_one_half min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
Power Control
- Power switching capability through TPS22929
High precision resistor
- 0.08Ω for Current up to 1A
- 2010 package, 0.5W max, 1% tolerance
INA226: Current / Power Monitor
- Contains a TI INA226 for the ADC conversion.
[/av_textblock]

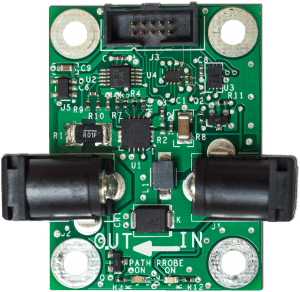

[/av_one_half][av_heading tag=’h2′ padding=’25’ heading=’Jack Power Probe’ color=” style=’blockquote modern-quote modern-centered’ custom_font=” size=” subheading_active=” subheading_size=’15’ custom_class=” admin_preview_bg=” av-desktop-hide=” av-medium-hide=” av-small-hide=” av-mini-hide=” av-medium-font-size-title=” av-small-font-size-title=” av-mini-font-size-title=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=”][/av_heading]
[av_one_half first]
[av_image src=’http://baylibre.com/wp/wp-content/uploads/2015/11/20150916_BayLibre_ACME_RevB-006-300×292.png’ attachment=’3805′ attachment_size=’medium’ align=’center’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[/av_one_half][av_one_half min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
Power Control
- Power switching capability through TPS22929
- 6A current limitation
- 20.5V transil for voltage protection
High precision resistor
- 0.01Ω for Current up to 6A
- 2010 package, 0.5W max, 1% tolerance
INA226: Current / Power Monitor
- Contains a TI INA226 for the ADC conversion.
[/av_textblock]
[/av_one_half][/av_section][av_section color=’main_color’ custom_bg=” src=” attachment=” attachment_size=” attach=’parallax’ position=’center center’ repeat=’stretch’ video=” video_ratio=’16:9′ min_height=” min_height_px=’500px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ id=’details’]
[av_heading tag=’h2′ padding=’0′ heading=’SW information’ color=” style=’blockquote modern-quote modern-centered’ custom_font=’#ffffff’ size=’60’ subheading_active=” subheading_size=’15’ custom_class=”][/av_heading]
[/av_section]
[av_section color=’main_color’ custom_bg=” src=” attachment=” attachment_size=” attach=’parallax’ position=’center center’ repeat=’stretch’ video=” video_ratio=’16:9′ min_height=” min_height_px=’500px’ padding=’large’ shadow=’no-border-styling’ bottom_border=’no-border-styling’ id=’details’]
[av_one_half first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]

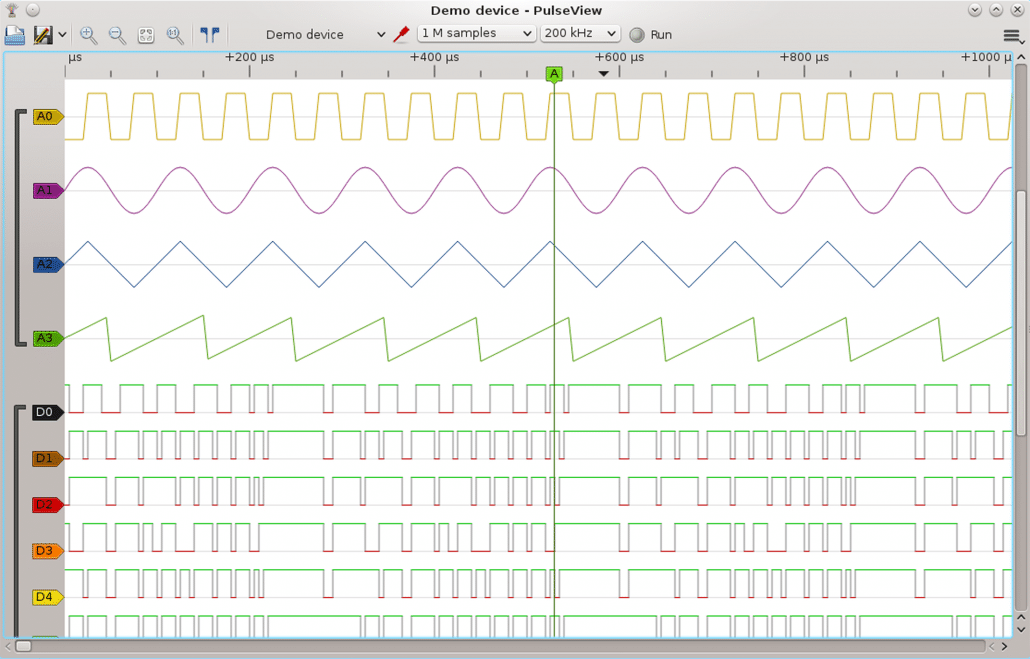

Custom Buildroot BBB Linux distribution
- Upstream ACME HW drivers
- Integrated with Sigrok SW Suite
- Low-level HW interface
- Command-line Interface, GUI front-ends
- Upstream driver, Buildroot package available
- Local (HDMI) & remote (vncviewer) use
[/av_textblock]
[/av_one_half][av_one_half min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_image src=’http://baylibre.com/wp/wp-content/uploads/2014/07/acme_revB_sigrok-1030×659.png’ attachment=’3811′ attachment_size=’large’ align=’center’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[/av_one_half][av_hr class=’default’ height=’50’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′]
[av_one_half first min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_image src=’http://baylibre.com/wp/wp-content/uploads/2014/07/acme_revB_xoscope-1030×778.png’ attachment=’3810′ attachment_size=’large’ align=’center’ styling=” hover=’av-hover-grow’ link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[/av_one_half][av_one_half min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=”]
[av_textblock size=” font_color=” color=”]

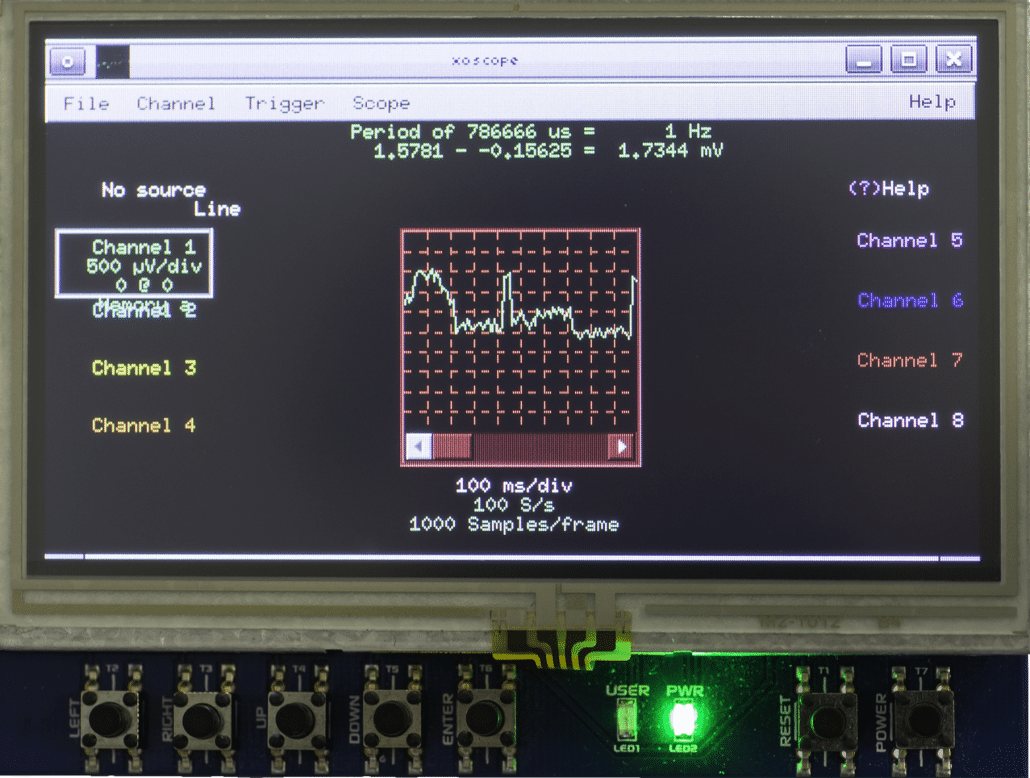

Integrated with Xoscope
- Digital oscilloscope Application
- Added Sigrok support for data sampling
- LCD Cape & HDMI output supported
[/av_textblock]
[/av_one_half][av_hr class=’default’ height=’50’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” admin_preview_bg=”]
More details about SW running on the ACME Cape is available on the following pages.
- https://baylibre-acme.gitlab.io
- https://gitlab.com/baylibre-acme
- sigrok.org/wiki/BayLibre_ACME
- sigrok.org/
- xoscope.sourceforge.net/
[/av_textblock]
